FusionPort™ Staging

📘
For best practices in message flow handling for a FusionPort™ Staging, check here.

Overview

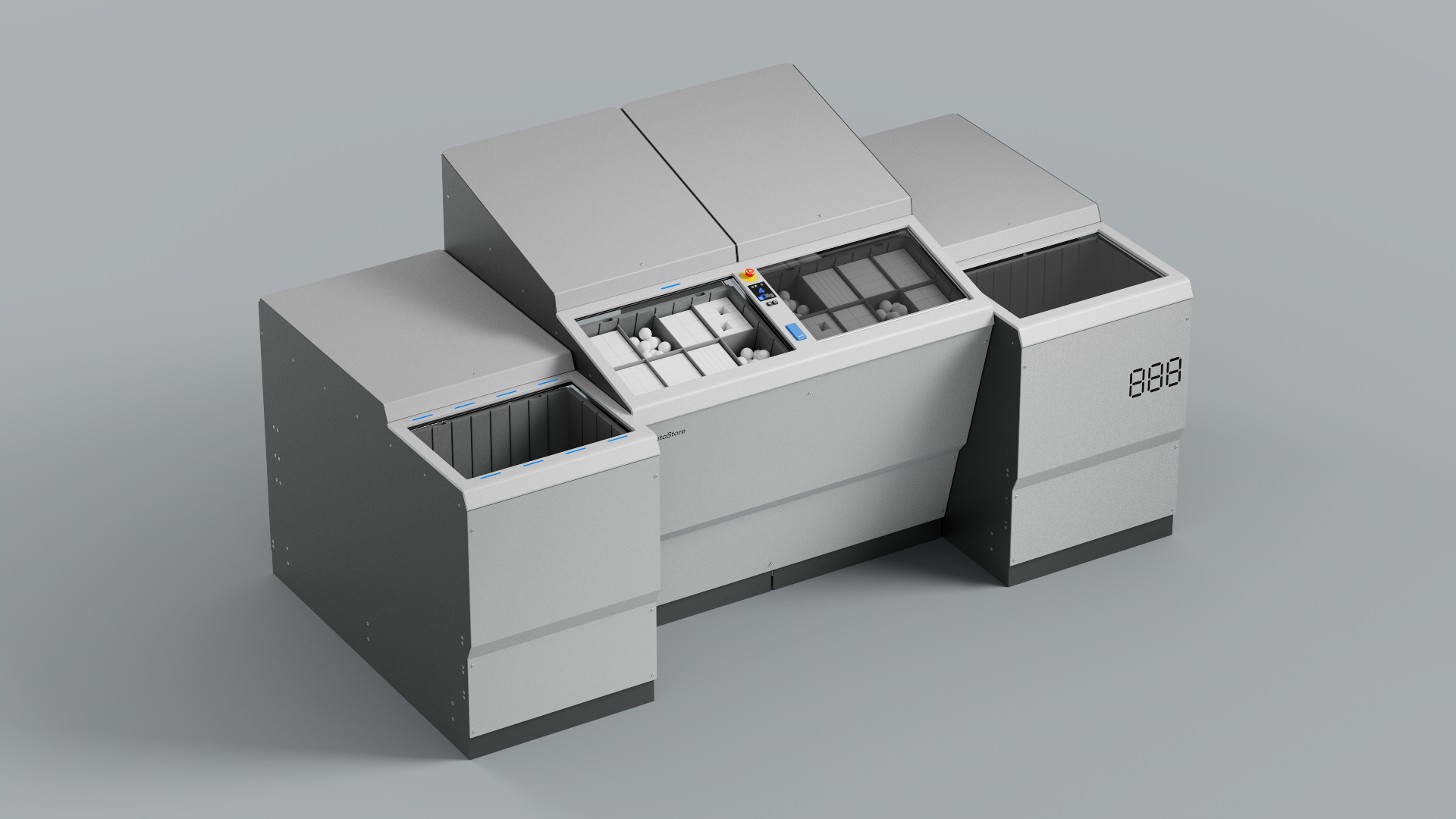

The FusionPort™ Staging consists of four sub-modules. Each sub-module can present bins independently of the others.

In a typical pre-picking use case, the two middle locations are used as source positions for picking. These positions tilt the bins to improve picking ergonomics. The two outer locations are typically used as target positions for placing picked items, and these bins do not tilt.

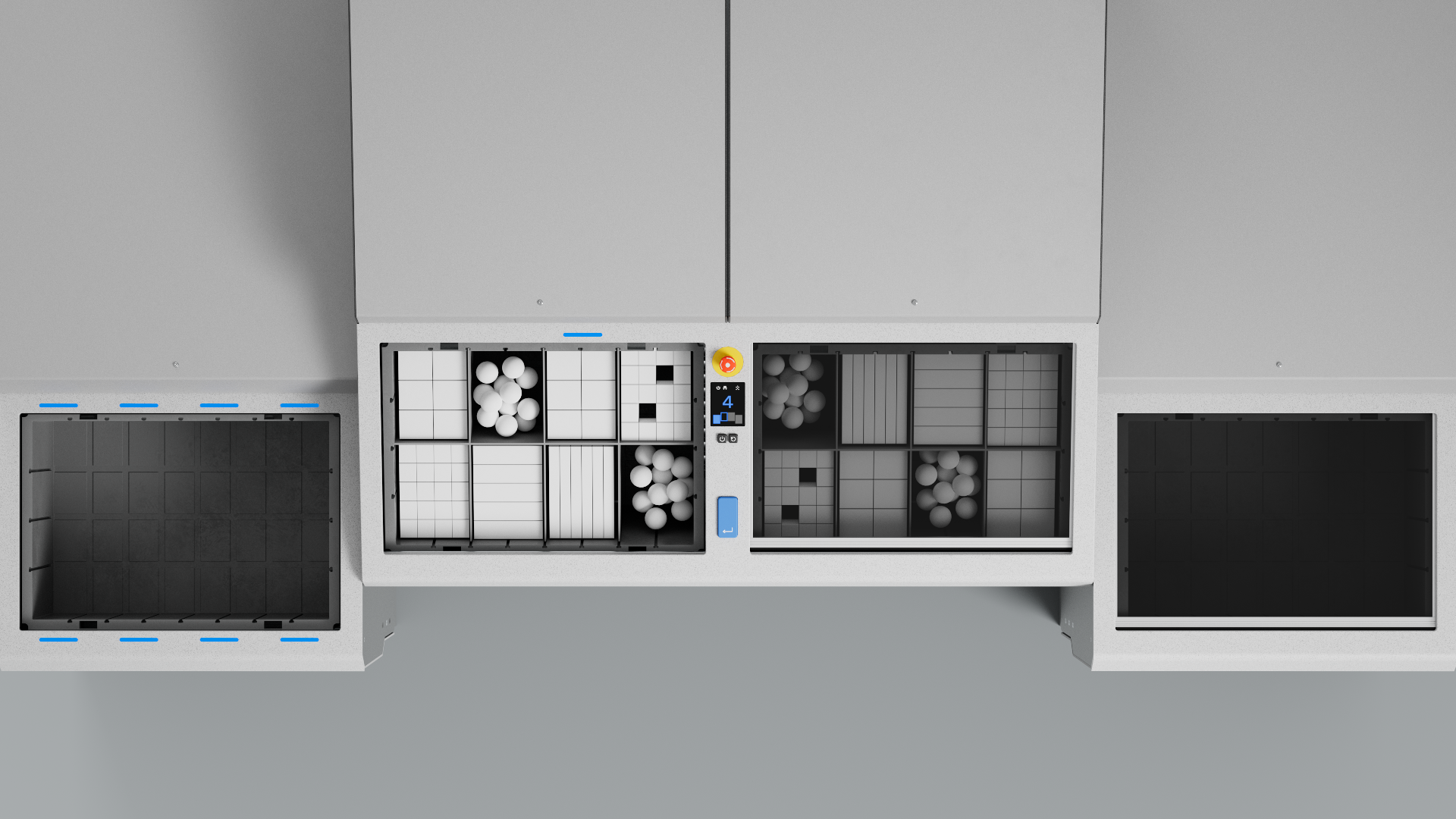

Source bins in the middle and target bins on the sides.

FusionPort™ HMI

The FusionPort™ HMI includes the following features:

Pick-to-Light: LED strips that indicate the source and target compartments.
Display: Shows the number of items to pick.
Confirm Button: Allows the operator to confirm the pick.

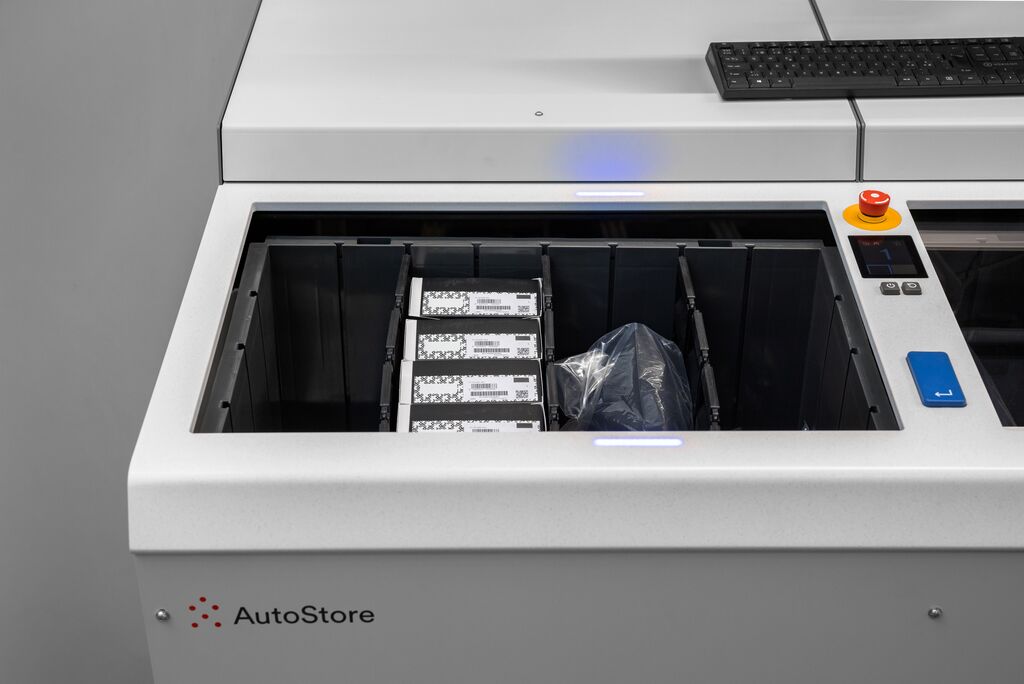

Operator interface (Emergency stop button, display, Retry/Restart buttons and Confirm button).

📘
FusionPort™ supports Pick-To-Light advanced functionality. For more details check here.
