Message Flow Visuals - Flow Charts

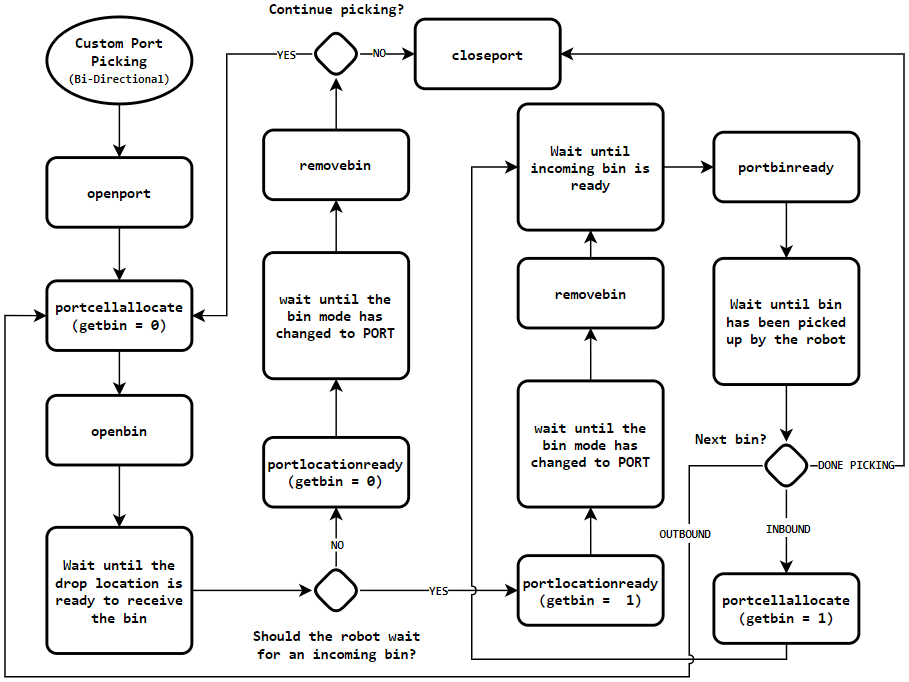

Custom Port Picking | Bi-directional

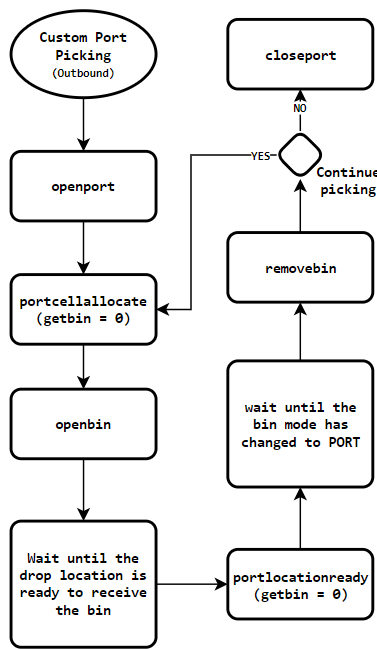

Custom Port Picking | Outbound

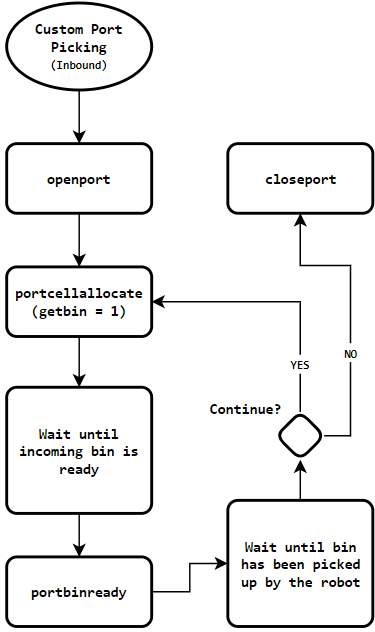

Custom Port Picking | Inbound

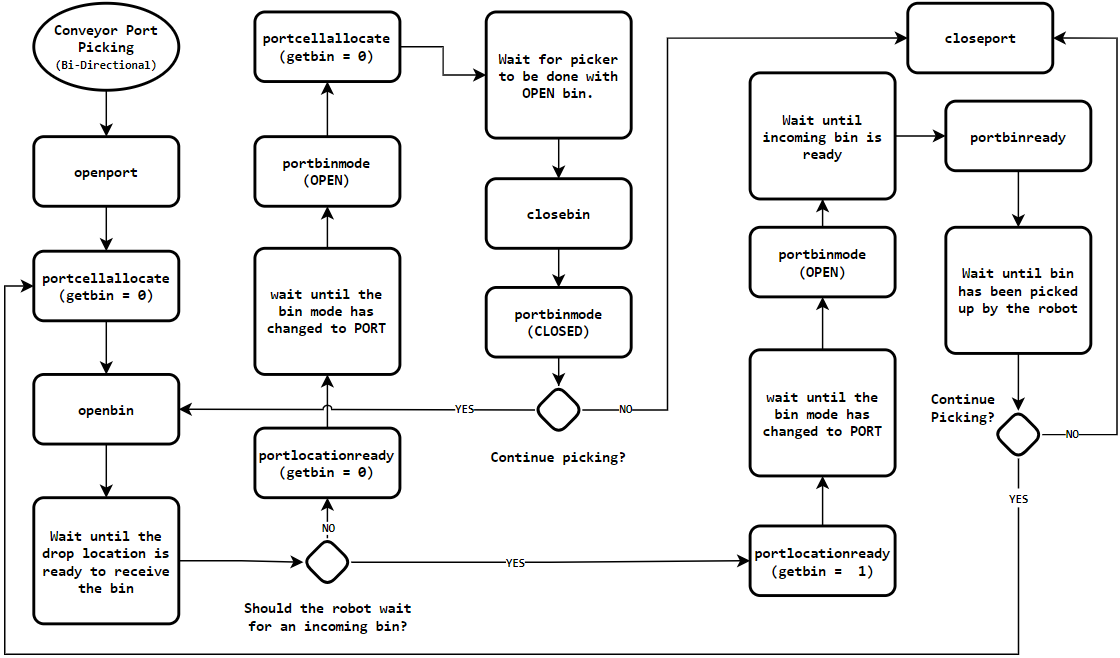

Port Exchange Picking | Bi-directional

Simplified Message Flow Visuals

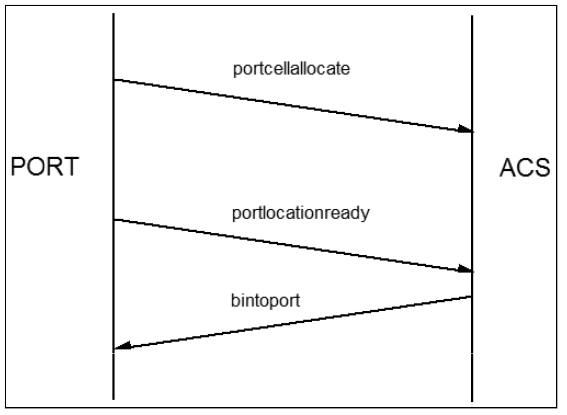

Port Retrieve Bin from Grid, visual example

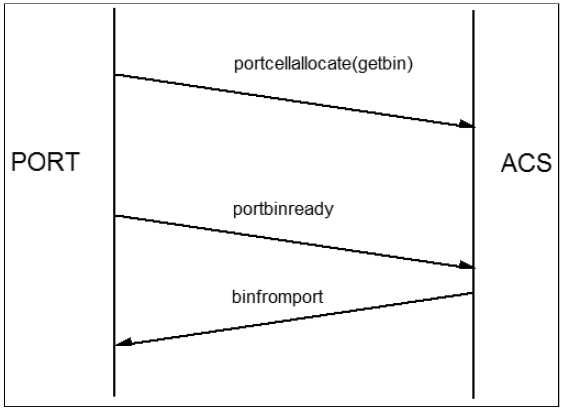

Port deliver bin to grid, visual example

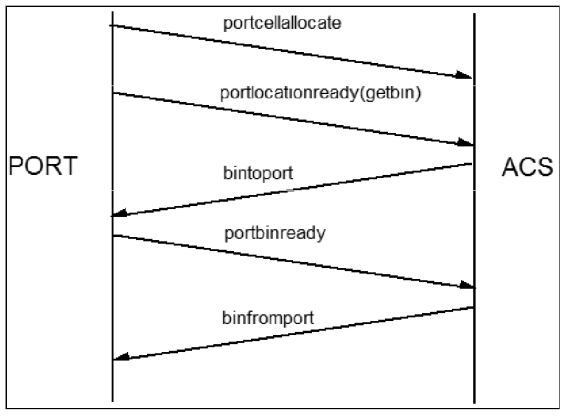

Port exchange bin with grid, visual example
